AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory

Product Categories

Xi'an Kacise Optronics Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Storage Temperature : -25°C–65°C (no condensation or frost)

Resolution : 1°C, 0.1°C (optional)

Data Retention : Non-volatile memory

Measurement Accuracy : ±0.5%FS

Model Number : AK6-APL110-C007R

Certification : ce

Place of Origin : china

MOQ : 1pcs

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Wiring Method : Terminal connection

Contact Now

AK6-APL110-C007R Series Temperature Controller

Electrical Specifications

Item	Specification
Rated Voltage	180V-240V AC, 50Hz
Power Consumption	≤5VA
Operating Environment	Ambient temperature: 0-50°C Relative humidity: 35%-85% RH (non-condensing)
Storage Temperature	-25°C-65°C (no condensation or frost)
Resolution	1°C, 0.1°C (optional)
Wiring Method	Terminal connection
Measurement Accuracy	±0.5%FS
Data Retention	Non-volatile memory
Installation Environment	Indoor installation, free from corrosive gases
Relay Output	Relay control output: AC220V/DC30V, 3A
Analog Output	(Optional) DC12V: 0-5V/1-5V; DC0-5V/1-5V; Output current: ≤30mA; Load resistance ≥1kΩ

Product Model Selection

Please refer to the following code description to confirm whether the delivered product model matches the selected one.

① Front Size A: 48*48 B: 48*96 C: 96*48 D: 72*72 E: 96*96
② Input Signal K, E, J, N, Wre3-25, Wre5-26, Pt100, Cu50
③ Power Supply A: AC power supply D: DC power supply S: Battery test
④ Output Function 1: Relay output 2: Analog output 3: Logic level output
⑤ Control Mode 0: Single setpoint control (heating) 1: Dual setpoint control (heating/cooling) 2: Time proportional control 3: On/off control 4: PID control
⑥ Additional Functions 0: None 1: Communication function (RS485) 2: Timer function 3: Programmable segment control function
⑦ Custom Code Custom product, defined based on specific order requirements

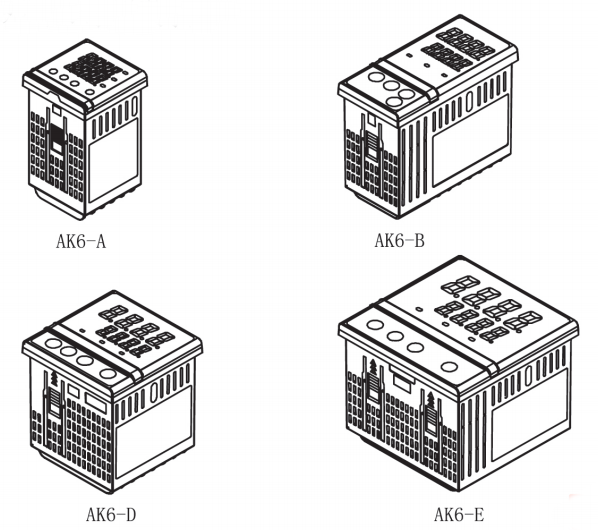

Appearance and Mounting Dimensions

Unit: mm

Model	Panel Size (mm)	Overall Dimensions (L * W * H, mm)	Mounting Hole Size (mm)
AK6-A	48 * 48	76 * 45 * 45	46 * 46
AK6-B	48 * 96	72 * 44 * 90	45 * 91
AK6-D	72 * 72	72 * 66 * 66	67 * 67

Operation Panel Function Description
